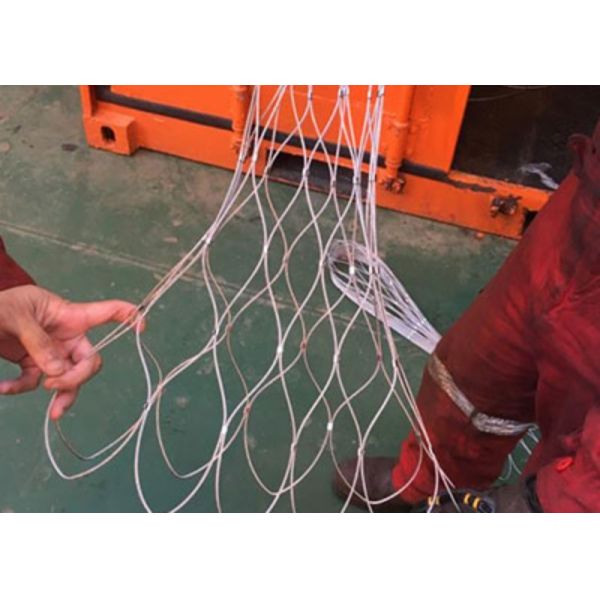

Stainless Steel 304 Wire Rope Mesh for Fencing and Security
| Attribute |
Value |
| Product |
Wire Rope Mesh |
| Material |
Stainless Steel 304 |
| Mesh Size |
10mm-150mm |
| Cable Diameter |
1.2mm-4.0mm |
| Length |
1m-25m |
| Application |
Fencing, Security, Etc. |
| Width |
6m |
Stainless Steel Wire Rope Mesh SS316 is an ideal solution for bag protectors and anti-theft backpacks, combining durability with security.
Stainless Steel Rope Mesh Features
Wire rope ferrule mesh, also known as cable ferrule mesh or stainless steel ferrule rope mesh, is made of 304, 304L, 316 or 316L stainless steel materials. It combines both flexibility and stability with a high strength-to-weight ratio, showcasing the super-toughness and plasticity of austenitic stainless steel.
As a premium product in architectural decoration and protection, wire rope ferrule mesh adds a fashionable element to modern architectural designs and is increasingly favored by designers worldwide.
Applications
Our safety protection solutions are suitable for various types of footbridges, highway bridges, and suspension bridges to prevent falls. We also offer personalized design solutions, including options to add glitter or LED modules for unique project designs.
Key Advantages
- Easy assembly and durability: Wire ropes are securely fixed with ferrules for simple installation
- High performance: Stainless steel material offers excellent load-bearing capacity with relatively low weight
- Flexible structure: Can be bent and folded without compromising strength or safety
- Corrosion resistance: Made from 304, 304L, 316, and 316L materials for exceptional weather resistance
- Customizable designs: Rope diameter, opening size, and mesh aperture can be tailored to project requirements
Standard Specifications
| Wire Rope Diameter (D) |
Mesh Aperture (M) |
| 7 × 19 (5/32" / 4.0mm) |
3" × 3" |
| 7 × 19 (5/32" / 4.0mm) |
3.6" × 3.6" |
| 7 × 19 (5/32" / 4.0mm) |
4" × 4" |
Stainless Steel Cable Mesh is produced from high-quality stainless steel wire cable and comes in two main types: ferrule type (X-TEND Mesh) and inter-woven type (hand-woven net).
Buckle Types
Closed-type buckle: Features multiple steel wire ropes combined together for extra strength, with multiple joints at the closure end.
Open-type buckle: The entire mesh can be made with a single steel wire rope for easier installation and a more seamless appearance.
